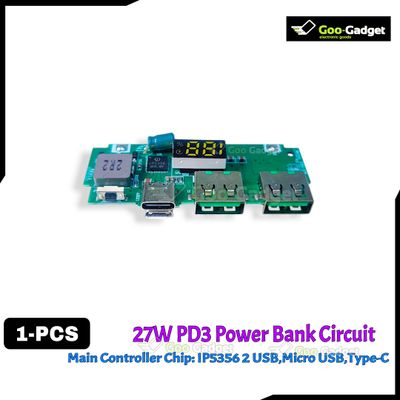

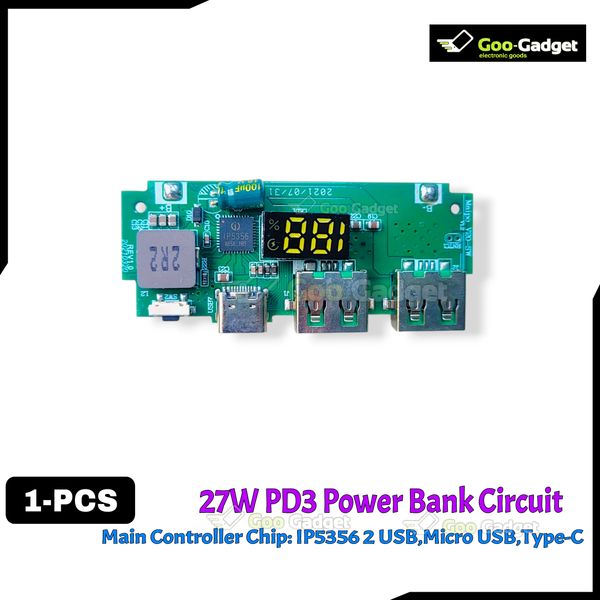

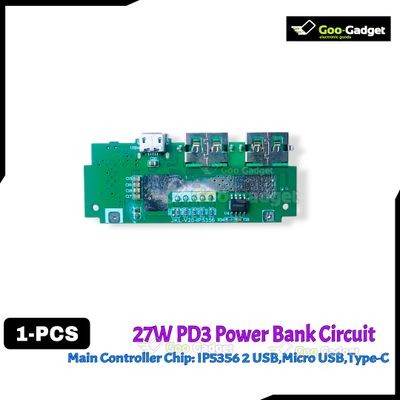

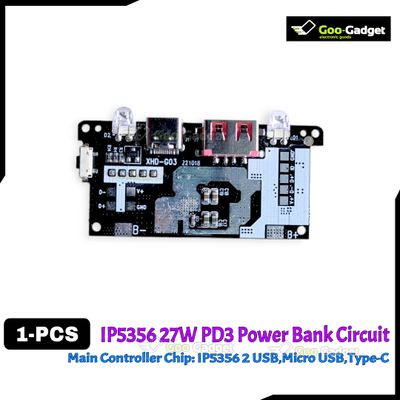

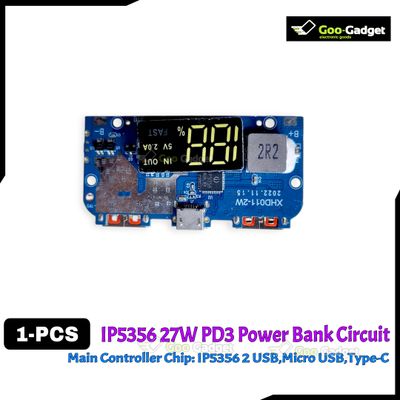

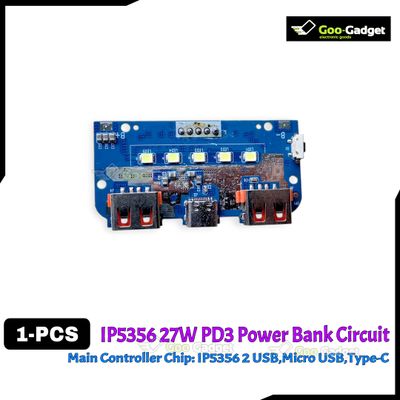

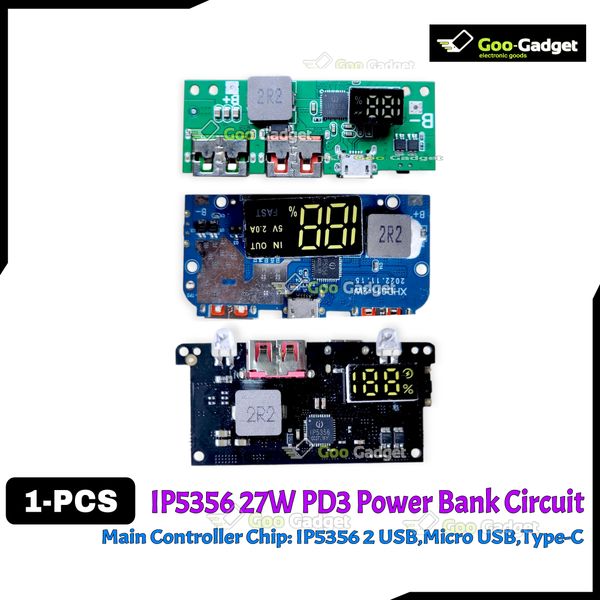

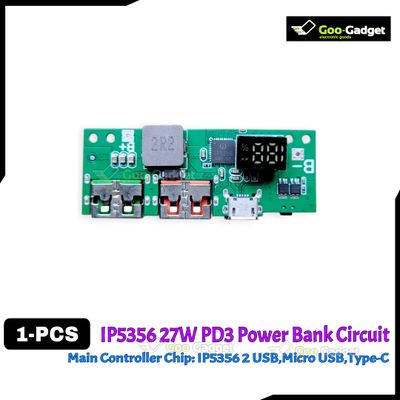

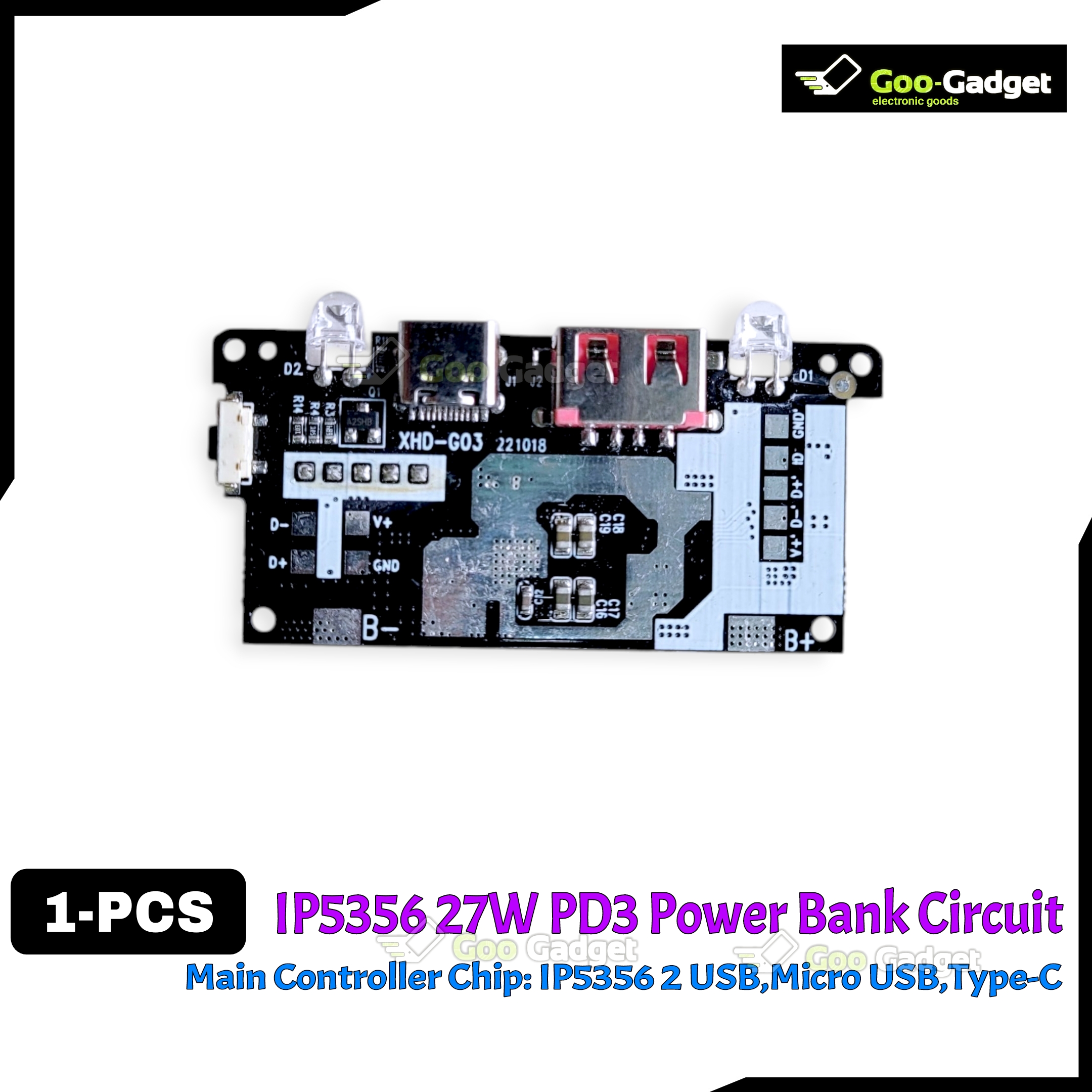

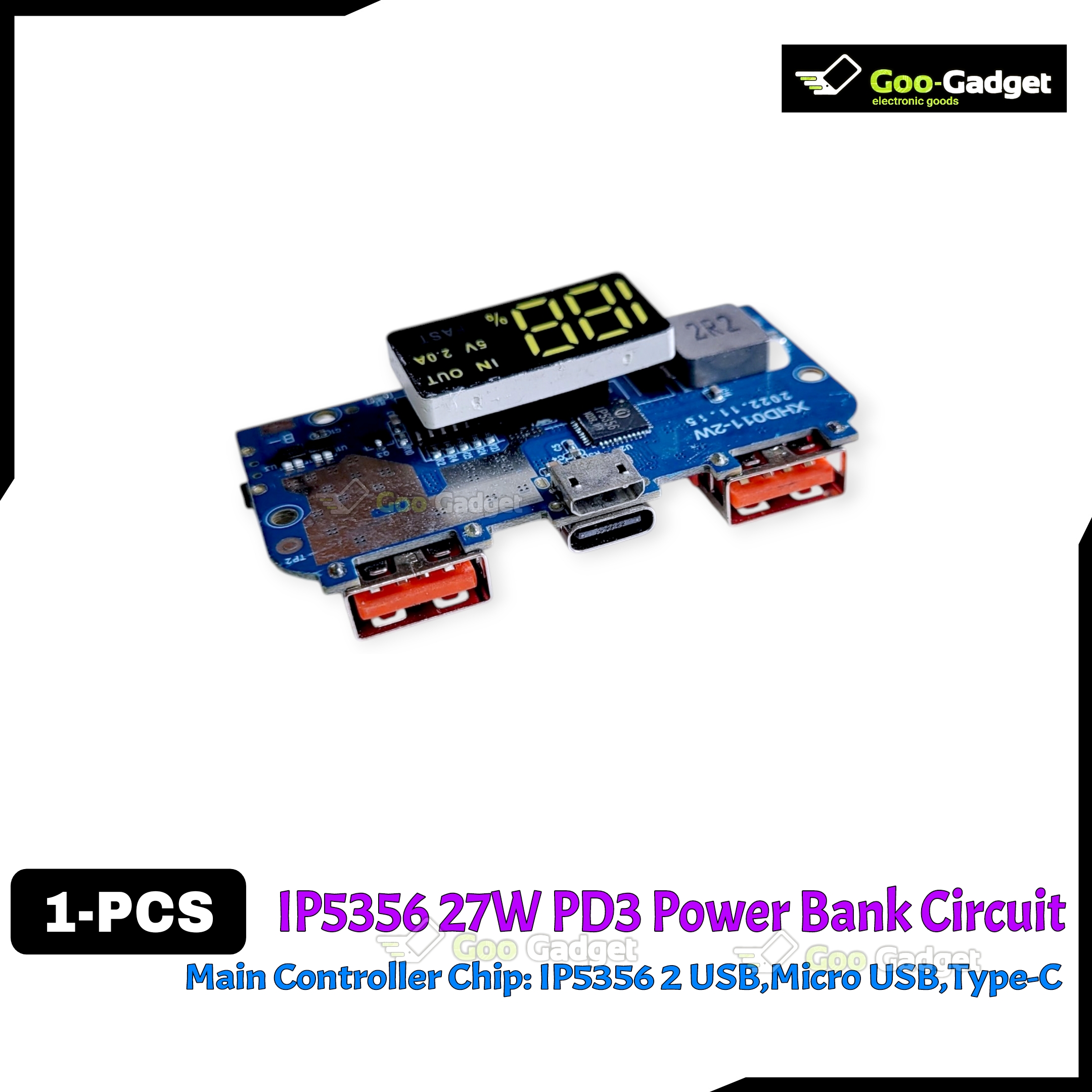

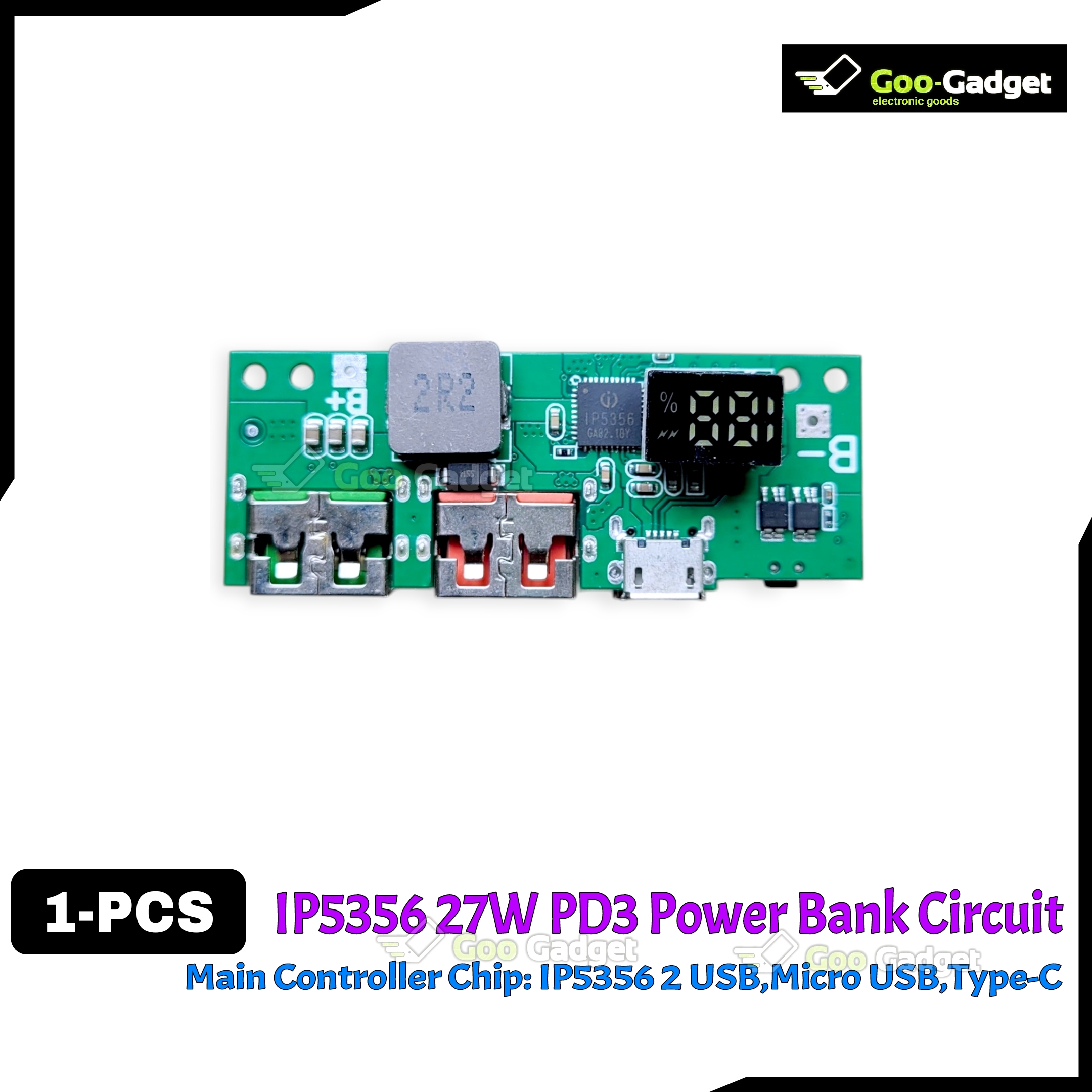

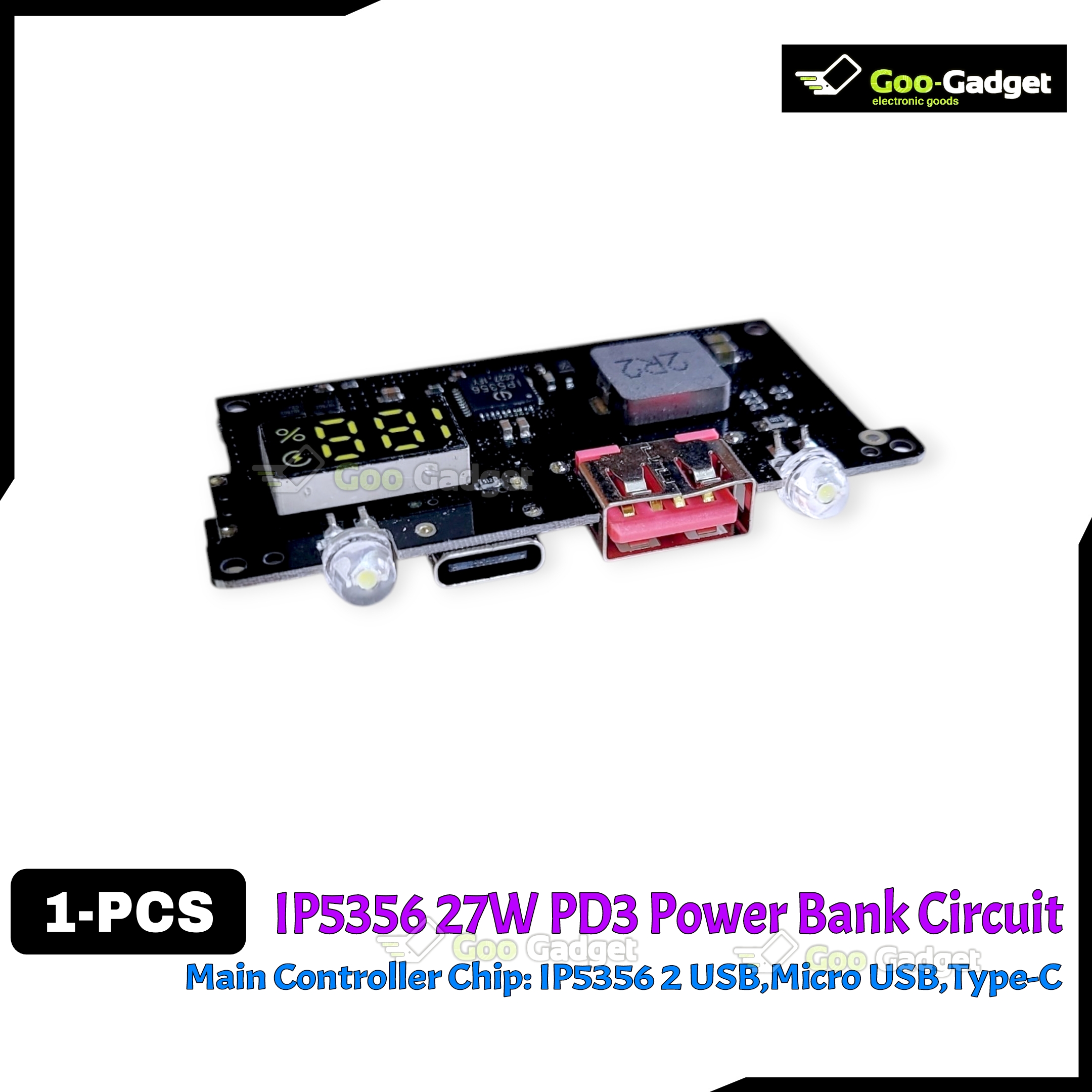

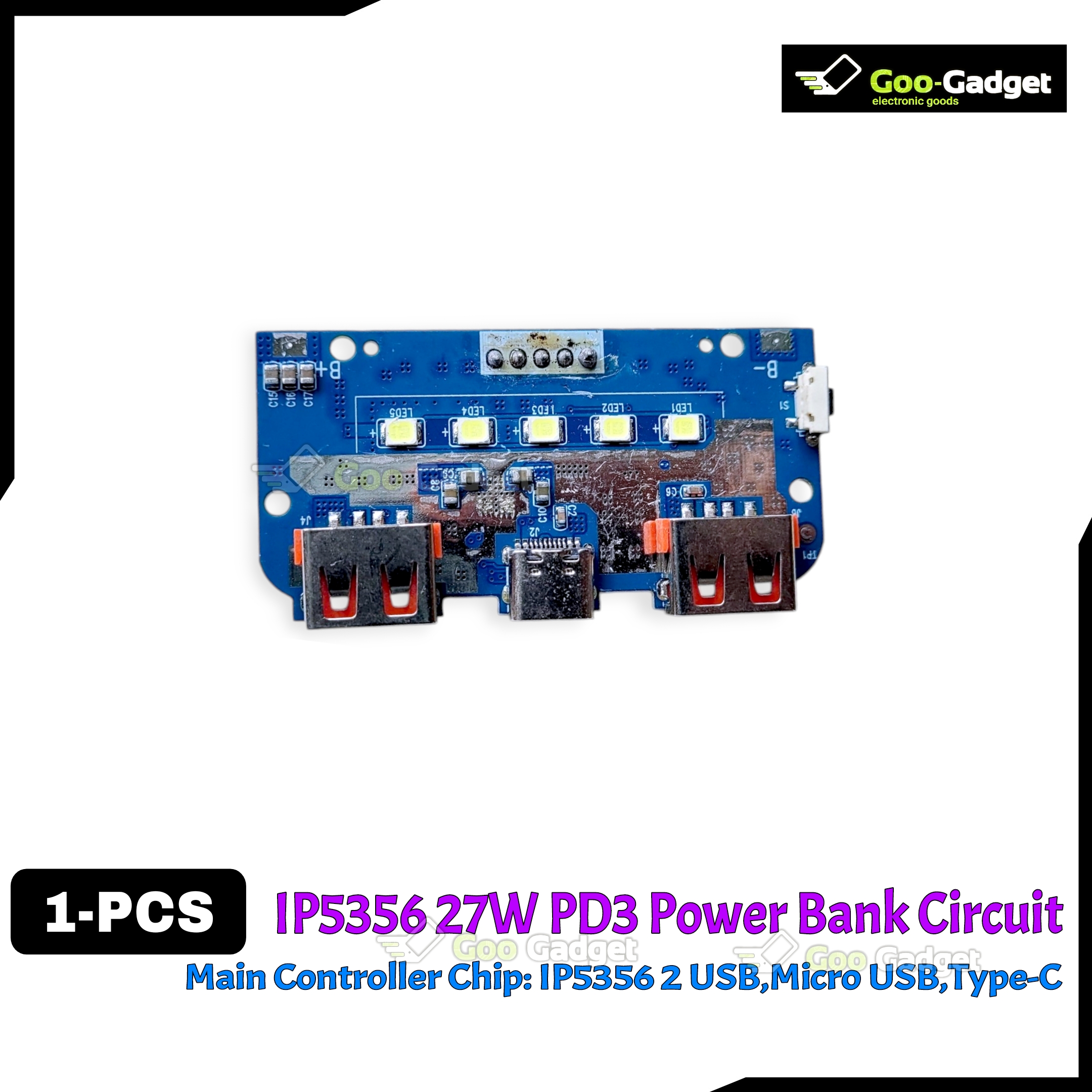

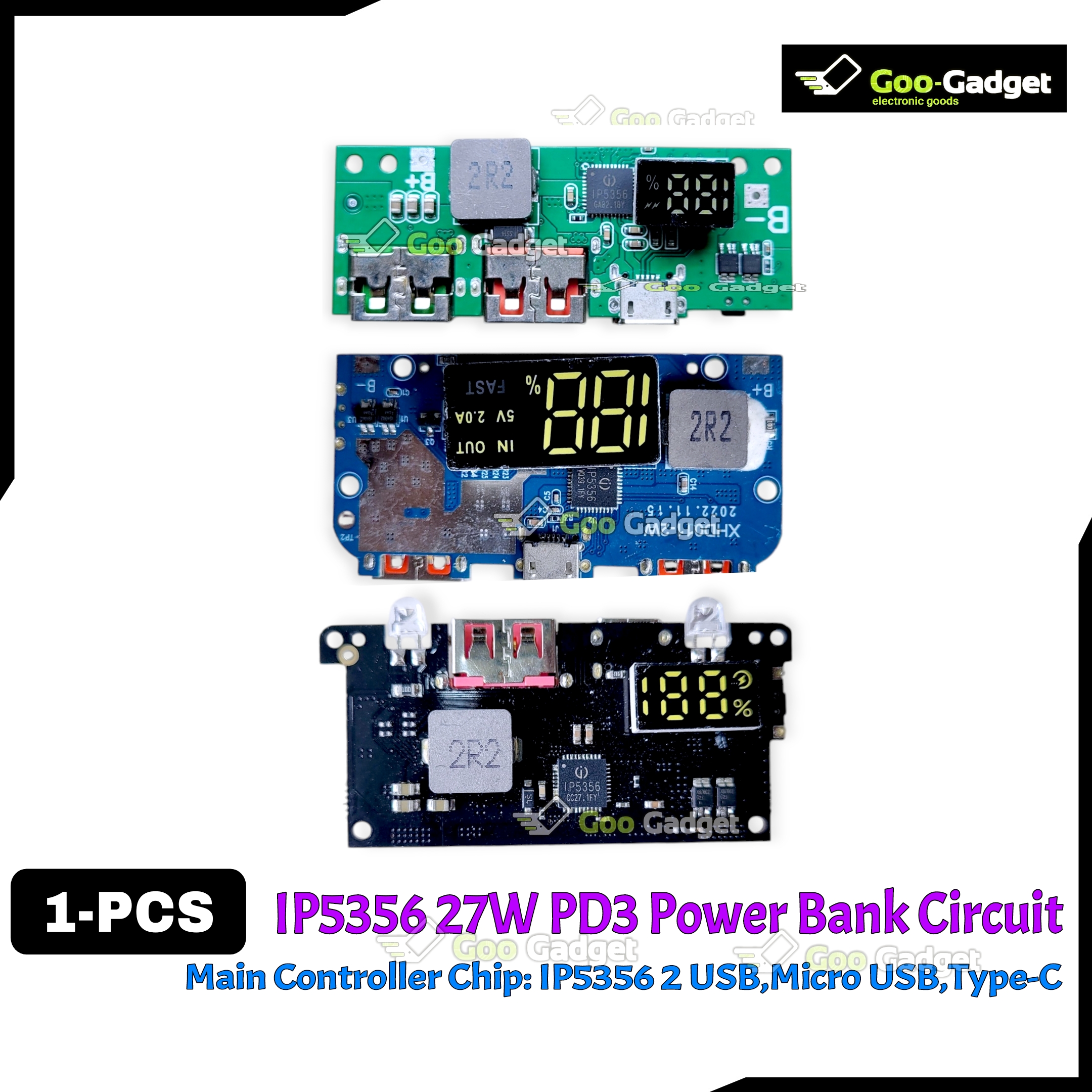

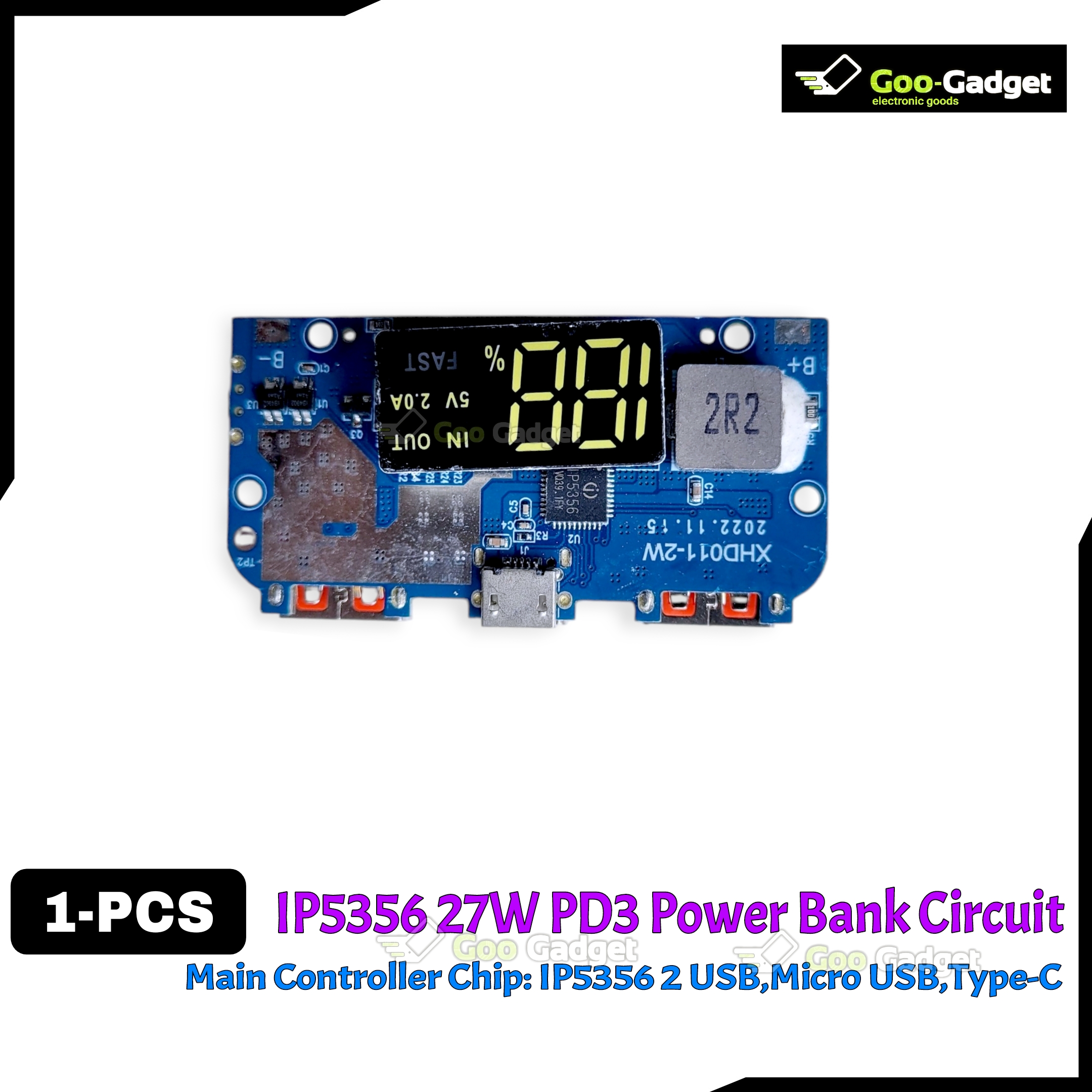

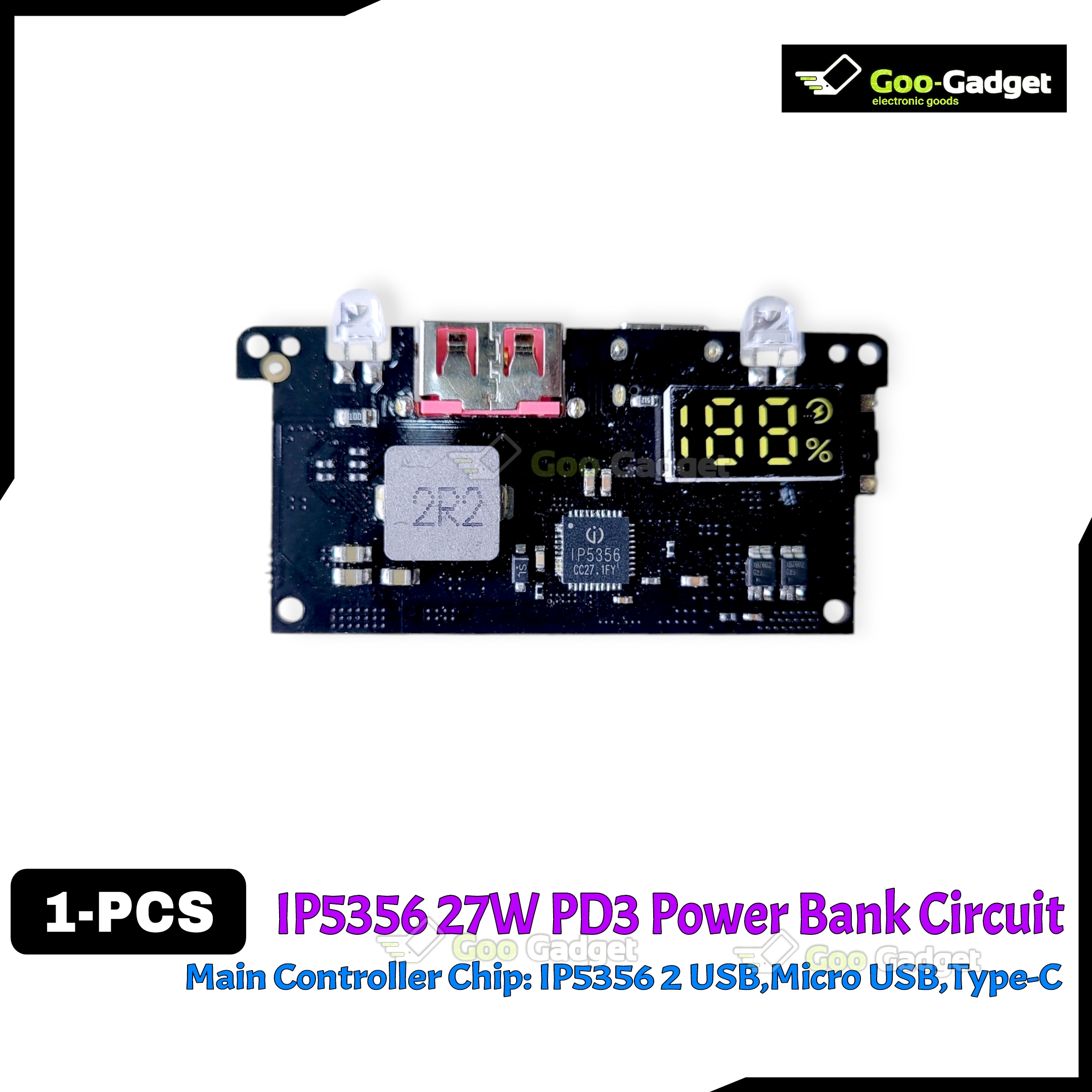

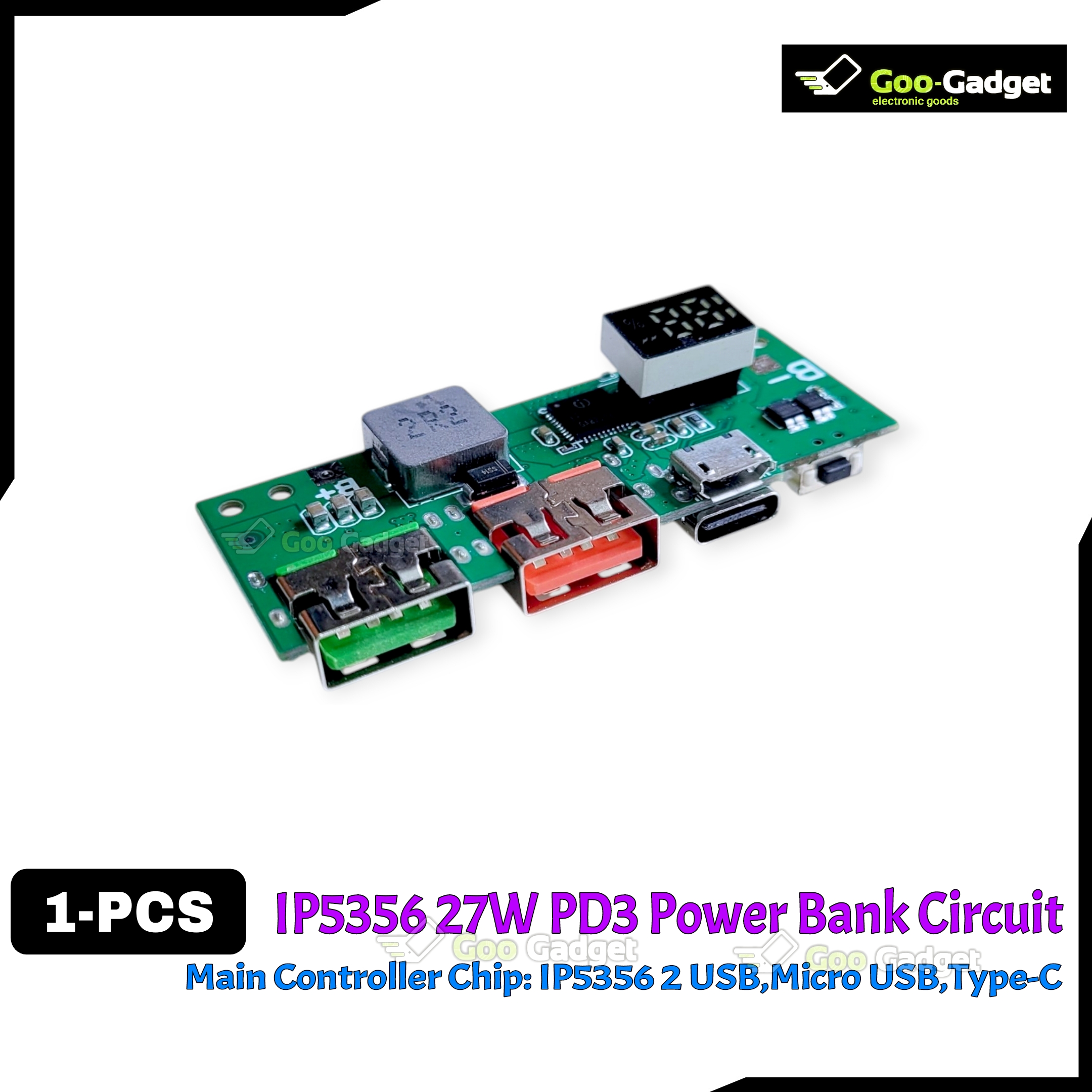

IP5356 27W Quick Charge PD3.1 USB 3.1 Gen-1 Digital Power Bank Circuit – 3-in-1 Charging Input Output Port – LED Display
Specification:Model: JKL-V20-IP5356Main Controller Chip: IP5356Input/Output Ports:1 x USB Type-C (PD 3.1 – Input/Output, up to 27W)1 x Micro USB (Input only)2 x USB-A (Standard 5V Output)Input Voltage: 3.7V-5V (via Micro USB or Type-C)Output Power: Up to 27W on PD 3.1Output Voltage: 5V (USB-A)Battery Support: 1S Lithium-ion Battery (3.7V)Display: Digital 3-digit LED (battery percentage)Protections: Overcharge, Over-discharge, Short-circuit, OvercurrentBoard Size: Approx. 78mm x 32mmDescription:Build your own high-performance USB charging station with the IP5356-based Power Bank Module, featuring PD3.1 27W Quick Charge support and a USB 3.1 Gen-1 Type-C port. Designed with 2 USB-A output ports, 1 Micro USB input, and 1 versatile USB Type-C port, this module supports both input and output functionality for maximum flexibility.An integrated LED display shows real-time battery percentage, so you're always aware of your power level. With support for 1S to 2S lithium-ion batteries and robust safety features, this module is perfect for DIY enthusiasts and electronics developers.Applications;DIY Fast-Charging Power BanksUSB Charging Station ProjectsRechargeable Battery Pack DevelopmentEmergency Phone ChargerSolar-Powered Charging Systems
Goo Gadget
Category List
All products
Specification:
- Model: JKL-V20-IP5356
- Main Controller Chip: IP5356
- Input/Output Ports:
1 x USB Type-C (PD 3.1 – Input/Output, up to 27W)
1 x Micro USB (Input only)
2 x USB-A (Standard 5V Output)
- Input Voltage: 3.7V-5V (via Micro USB or Type-C)
- Output Power: Up to 27W on PD 3.1
- Output Voltage: 5V (USB-A)
- Battery Support: 1S Lithium-ion Battery (3.7V)
- Display: Digital 3-digit LED (battery percentage)
- Protections: Overcharge, Over-discharge, Short-circuit, Overcurrent
- Board Size: Approx. 78mm x 32mm
Description:
Build your own high-performance USB charging station with the IP5356-based Power Bank Module, featuring PD3.1 27W Quick Charge support and a USB 3.1 Gen-1 Type-C port. Designed with 2 USB-A output ports, 1 Micro USB input, and 1 versatile USB Type-C port, this module supports both input and output functionality for maximum flexibility.
An integrated LED display shows real-time battery percentage, so you're always aware of your power level. With support for 1S to 2S lithium-ion batteries and robust safety features, this module is perfect for DIY enthusiasts and electronics developers.
Applications;
- DIY Fast-Charging Power Banks
- USB Charging Station Projects
- Rechargeable Battery Pack Development
- Emergency Phone Charger
- Solar-Powered Charging Systems
IP5356 27W Quick Charge PD3.1 USB 3.1 Gen-1 Digital Power Bank Circuit – 3-in-1 Charging Input Output Port – LED Display
250 BDT300 BDTSave 50 BDT
